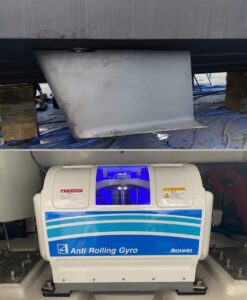

Fins vs Gyros – Which Is Better For Your Vessel?

The choice between fin and gyroscopic stabilization systems significantly impacts your boating experience, operational costs, and comfort. Understanding their core differences, strengths, and limitations is crucial for selecting the best system for your vessel type and preferences.

The systems operate to minimize boat rolling motion, which leads to reduced seasickness and enhanced time spent on the water.

These two systems operate through separate mechanisms. Fin stabilizers resemble airplane ailerons, using water flow to product distinct performance results based on boat speed, size, and intended application.

How the Systems Work

Fin Stabilizers

To produce opposing forces which stabilize boat roll, fin stabilizers use underwater extensions from the hull. These fins produce lift or downforce through their angled position and automatically change their angle to create stabilizing forces, pushing the boat back toward level when it rolls to one side. At anchor and low speeds, the fins move quickly back and forth through the water, similar to how a fish maintains its position, generating water flow that enables stabilizing forces regardless of the boat’s forward speed.

Gyro Stabilizers

A heavy flywheel which spins at high RPM’s generates angular momentum to function as a gyroscopic stabilizer. The spinning mass of the gyroscopic system maintains its spatial position when the boat experiences rolling motion. The gyro system uses precession control to direct the spinning flywheel’s fore and aft movements which produces strong forces that stabilize the boat against rolling motion.

Modern Gyro systems use boat movements to adjust precession rates which results in smooth stabilization while preventing abrupt or unnatural movements.

Performance Comparison

Speed-Dependent Effectiveness

Fin stabilizers excel at higher speeds, with their force output increasing exponentially, making them ideal for managing challenging conditions. Gyro stabilizers, however, maintain constant force regardless of speed, and are effective in all sea conditions, not just slow speeds or at anchor.

At-Rest Performance

Gyro stabilizers deliver better roll reduction performance than fin stabilizers when a boat remains stationary or drifts in the water. The SEANAV research demonstrated that gyros achieve between 76-95% roll reduction performance when boats remain stationary. Fin systems need bigger fins and active fin movement to match gyro performance at anchor but they can still provide effective stabilization.

Underway Capabilities

Fin stabilizers reach their peak performance level when boats cruise at their normal operating speeds. The speed-dependent force output of fins provides maximum stability to boats during their most challenging stabilization periods which occur when they reach planing speeds. Fins maintain excellent stability during high-speed operations but match their performance level on fast-moving vessels.

Installation and Space Considerations

Fin Stabilizer Requirements

The installation of fins needs precise positioning at the center of the ship because this area provides the best stabilizing effect. The fins need strong hull support because their operation produces major structural loads. The installation process involves making holes in the hull and installing hydraulic or electric actuators and control systems.

The curved design of modern vector fins provides superior lift performance and lower drag resistance compared to traditional straight fins. The installation of any fin system leads to drag resistance which affects both fuel efficiency and maximum speed performance.

Gyro Installation Needs

The installation of gyros provides better hull protection because they operate without penetrating the hull and they do not add any external components to the vessel. The spinning flywheel of the system needs strong internal support and enough space because it produces powerful forces.

The small size of gyros makes them ideal for boats with limited space because they can be installed in small areas but bigger boats may need multiple units for maximum performance.

Operational Considerations

Power and Maintenance

Fin stabilizers with hydraulic systems are powered by engine-driven pumps, allowing for free stabilization during boat operation. They require generator power when the vessel is stationary and offer in-place maintenance, reducing service costs and improving accessibility.

Older gyro units take 45 to 60 minutes to spool up, while new modern Gen 4 gyros, like those from Dometic, only take 16 minutes to spin up and down. Similarly, older Gen 3 gyros may require specialized maintenance.

Motion Control

While older Gen 3 Seakeeper gyro systems  primarily focus on roll reduction, fin stabilizers offer additional advantages beyond roll reduction, including stabilization of sway motion, yaw control, and assistance with list from wind or weight distribution, as well as controlled banking during turns. Fin systems require strong hull support because their operation produces major structural loads. This multi-axis control enhances comfort and vessel handling. However, new Gen 4 Dometic Gyros address these limitations and offer comparable multi-axis control.

Cost Considerations

The first purchase expenses between these systems match, but complete installation expenses differ based on the specific needs of each vessel.

Fin systems are almost always more expensive than a gyro. However, fin systems offer better value for vessels needing stabilization across all speed ranges, as one properly sized system can handle the entire speed spectrum effectively. The cost of gyro stabilizers increases when large single units are needed to match performance levels at all speeds.

Making the Right Choice

Select fin stabilizers when:

• Your boat operates at high speeds during most of its time on the water.
• The system provides enhanced stability when you increase speed.
• The system is best suited for large yachts.
• The system allows users to perform maintenance directly on-site.
• The system needs to operate at all speeds.

Select gyro stabilizers when:

• You want to avoid any external attachments on your vessel.
• You need a system that is effective at all speeds.
• Your main concern is how well the system performs when the boat is stationary.
• You want to prevent water from entering your boat through hull penetrations.

The Hybrid Approach

Large vessels sometimes use both fin and gyro systems to benefit from their individual performance characteristics. The operation of both systems at once may lead to gyro interference with fin performance during boat operation so proper system integration and control systems must be implemented.

Bottom Line

Fin stabilizers and gyro systems both reduce boat roll and enhance comfort but they work best in different boating conditions. The performance of fins increases exponentially with speed while gyros deliver excellent stationary stabilization through their design without external attachments.

Your selection between fin stabilizers and gyro systems depends on your boat type and your boating habits and maintenance preferences. Your boating habits and vessel characteristics along with your willingness to handle maintenance tasks should guide your decision between these systems. The correct choice of stabilization technology depends on your specific boating requirements and expectations.
